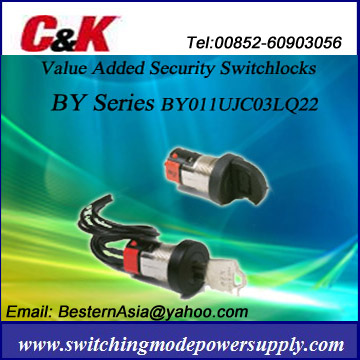

C&K BY011UJC03LQ22 Switchlocks (BY Series)

C&K BY Series
4 Tumbler Value Added Security Switchlocks

Features/Benefits
• Anti-static switch
• Removable lock core
• Latch pawl option
• Snap-together assembly

Typical Applications
• Computers
• Point-of-sale terminals
• Postal equipment

Specifications
1. Contact Rating: Q contact material: 4 AMPS @ 125 V AC or 28 V DC; 2 AMPS @ 250 V AC (UL/CSA). Low level models with gold plating available. See page M-26 for additional ratings.
2. Electrical Life: 10, 000 make-and-break cycles at full load.
3. Contact Resistance: Below 10 m ½ typ. initial @ 2-4 V DC, 100 mA, for both silver and gold plated contacts.
4. Insulation Resistance: 109 ½ min.
5. Dielectri Strength: 1, 000 Vrms min. @ sea level.
6. Indexing: 45º or 90º, 2-3 positions. Other functions available, consult Customer Service Center.
7. Static Resistance: Anti-static models exceed 20 KV DC static resistance @ sea level, lock body to terminals.
