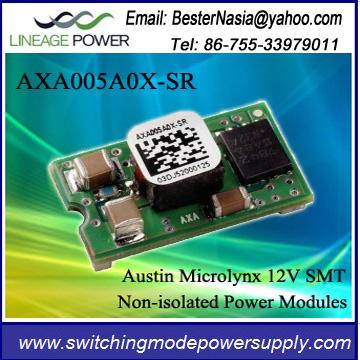

12V SMT Non-isolated Power Modules: Lineage AXA005A0X-SR

Features:

12V SMT Non-isolated Power Modules: Lineage AXA005A0X-SR
1. Small Size, low profile
2. UL, CSA, VDE List
3. Low ripple



12V SMT Non-isolated Power Modules: Lineage AXA005A0X-SR

Features:

1. Small Size, low profile: 20.3 mm x 11.4 mm x 7.24 mm
2. Low output ripple
3. High Reliable
4. Output overcurrent protection (non-latching),   Over temperature protection
5. UL, CSA,  VDE approval
6. Line Regulation: 0.3% (typical)
7. Load Regulation: 0.4% (typical)

Austin MicroLynxTM 12Vdc SMT (surface mount technology) power modules are non-isolated dc-dc converters that can deliver up to 5A of output current with full load efficiency of 89% at 3.3V output.

These modules provide precisely regulated output voltage programmable via external resistor from 0.75Vdc to 5.5Vdc over a wide range of input voltage (VIN = 10 - 14V). Their open-frame construction and small footprint enable designers to develop costand space-efficient solutions. Standard features include remote On/Off, programmable output voltage and overcurrent protection.

Electrical Specification:

Ordering Information:

AXA005A0X-SR

switched mode power supplies

12V SMT Non-isolated Power Modules: Lineage AXA005A0X-SR Images
