C&K Y100AA2C203NQ Tumbler Switchlocks(Y Series)

Bestern Asia Industrial Limited
Contact Now

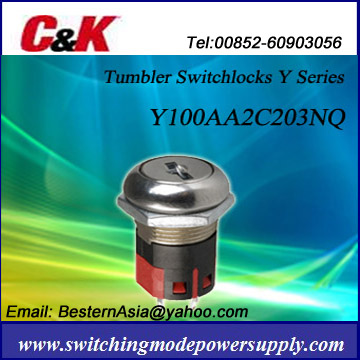

C&K Y100AA2C203NQ Tumbler Switchlocks(Y Series)

  • 1
  • 2
  • 3

Place of Origin : United States

Brand Name : C&K

Model Number : Y100AA2C203NQ

Max. Current : 4A

Max. Voltage : 125V

Mechanical Life : 10000

Switches : Switchlocks

MOQ : 10 Piece/Pieces

Port : Hong Kong

Packaging Details : Original

Delivery Time : Depends on when PO confirmed

Payment Terms : T/T

Supply Ability : 1000000 Piece/Pieces per Year

Contact Now



1. Original C&K Y100AA2C203NQ X 4pcs exstock
2. Anti-static switch
3. Momentary models available
4. Wire leads and harnesses




Features/Benefits
• Anti-static switch—exceeds 20 KV DCstatic resistance
• Momentary models available
• Wire leads and harnesses available





Typical Applications
• Point-of-sale terminals
• Cash registers
• Computers





Specifications
1. Contact Rating: Q contact material: 4 AMPS @ 125 V AC or 28 V DC; 2 AMPS @ 250 V AC (UL/CSA). See page M-9 for additional ratings.
2. Electrical Life: 10, 000 make-and-break cycles at full load.
3. Contact Resistance: Below 10 m ½ typ. initial @ 2-4 V DC, 100 mA, for both silver and gold plated contacts.
4. Insulation Resistance:109 ½ min.
5. Dielectric Strength: 1, 000 Vrms min. @ sea level.
6. Indexing: 45º or 90º, 2-4 positions (4&5 tumbler switchlocks). 45º, 3 positions; or 90º, 2 positions (6 tumbler tubularswitchlocks).
7. Other functions available, consult Customer Service Center.
8. Static Resistance: Anti-static models exceed 20 KV DC static resistance @ sea level, lock body to terminals.
9. Mounting Torque: 10 in./lbs.; 14 in./lbs max.
