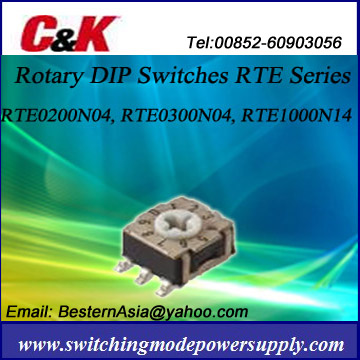

C&K RTE1010N14 Rotary DIP Switches (RTE Series)

Features/Benefits
• Thru-hole and surface mount models
• Miniature size with robust stainless steel cover
• Rotary SPDT, SP3T, SP4T functions
• Rotary binary-decimal and hexadecimal coding
• RoHS compliant

Typical Applications
• Timers, automation components
• Computer and peripherals
• Alarms, access control
• Instrumentation

Specifications
CONTACT RATING:
Gold: 100 mA max. 10μ A min. 30 V DC max. 20 mVDC min.
Silver: 100 mA max. 1 mA min. 50 V DC max. 2 VDC min.
MECHANICAL LIFE: RTE02/03: 1, 500 actuations; RTE04/10/16:
20, 000 actuations
CONTACT RESISTANCE: 100 m½ max. initial;
150 m½ after life
INSULATION RESISTANCE: RTE02/03: 1013 ½ min.
RTE04/10/16: 1010 ½ min. initial
DIELECTRIC STRENGTH: RTE 02/03: 500 Vrms;
RTE 10/16; 300 Vrms
OPERATING TEMPERATURE: -25°C to 85°C.
STORAGE TEMPERATURE: -40°C to 85°C.
PACKAGING: N or R terminations in tube.
V termination in box. G termination in reel, 750 pieces per
reel. G termination with flush actuator, 1250 pieces per reel.

Order Information:

PC Mount-Terminal Option N

 Right Angle Mount-Terminal Option V

 Surface Mount-Terminal Option G
